Dodge Caliber's Usual Unlock Code Triggers
Dealing with a locked Dodge Caliber radio? Usually, it was caused by one of these common situations.
Radio Asking for Code After Battery Change
A dead battery is the most common reason a Dodge Caliber radio asks for a code.
Even a brief power loss is enough to trigger the built-in anti-theft lock.
More Situations Causing the Issue
- If a power circuit is interrupted, the radio can lock itself.
- When the radio is removed, it usually locks automatically.
- After a boost start, the radio may reset and request a radio code.
- After a software update, electrical repair, or an ECU reset, some Dodge Caliber radios ask for a code.
What is the Dodge Caliber Radio Security Code?
A radio code, also known as an anti-theft code is a unique numeric unlock key that reactivates your car audio system after it has been locked.
This factory security PIN is triggered when the radio is disconnected from power.
Automakers include this feature to protect factory stereos from theft.
If power is lost, the radio disables itself and asks for the CODE before it can function normally.
Once the right combination is entered, the stereo is restored to normal operation.
Quick Things to Check
There is a chance your Dodge Caliber radio code is written down in your documents.
Before using a paid service, take a few minutes check the places below - you might be surprised.
Search the Car Interior
- In the maintenance records provided with the car.
- On the back of the radio if the unit was previously removed.
- Near the spare tire, where some manufacturers place radio labels.
- In the user guide, often on a separate code card.
- On a sticker in the glove compartment.
Getting It from the Dealer
A Dodge dealer can usually retrieve the security code using your Caliber's vehicle identification number.
In most cases, you need to contact the service department or visit the dealership and show vehicle documents.
Once verified, they can generate the original anti-theft code for your radio.
Not Always Ideal:
- The process can take days depending on the model and database.
- You usually need to book an appointment and bring vehicle paperwork.
- Some older Dodge Caliber radios may not be supported.
- Dealers often ask for payment for the lookup service and it's sometimes more than 100$.
How to Locate the S/N on a Caliber
The only thing you'll need to retrieve the unlock code is your radio's serial number. No extra vehicle data is required.
On most Dodge models, you can find it in one of these places:
- Displayed on the radio screen (sometimes by using specific button presses)
- On the radio body itself - you'll need to remove the unit slightly and write down serial (which is usually simple)
Search for a label such as: S/N or Serial.
1. Displaying the Serial Number on the Caliber Screen
The Dodge Caliber (2006–2012) is a compact hatchback with a basic Chrysler radio. There is no touchscreen, no Uconnect system, and no Dealer Mode. The serial number is on a physical label on the radio chassis — you need to pull the unit out to read it.
T00AM394958584) is on the top or side of the radio chassis.
2. Locating your Serial on the Radio Unit
To find the serial number, you'll need to take out the head unit from the dashboard.
- Start by turning off the ignition and removing the trim panel.
- Next, release the clips and pull the unit forward to check the label on the back of the radio. Pay attention not to damage the connections.
- Write down full serial number precisely and come back to our website.
- Know that serial number and part number are not the same thing. You can find both of them on the unit, but you only care for the serial.

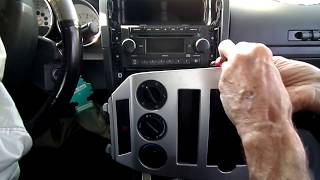

Accessing the Serial Number in Dodge Caliber
The Caliber has a distinct complication during removal—the A/C blend door cable is attached to the bezel, requiring extra care during disassembly.
Removal Process:
- Disconnect the battery (recommended)—the radio is close to airbag wiring. Disconnect the positive terminal and wait 15 minutes before proceeding.
- Remove the center bezel—held by clips, but the A/C blend door cable is attached to it. You must either:
- Disconnect the cable from the temperature control lever, OR
- Remove 4 Phillips screws on the A/C control panel to remove it with the bezel
- Remove the radio—4 Phillips screws.
Note: The Caliber uses a CAN bus system, which is relevant if you're considering aftermarket radio installations. Tools needed: Phillips screwdriver, plastic pry tool
Example: Dodge Caliber serial number label location
Serial Number Formats You'll See on Dodge Caliber
The radio uses serials starting with T00AM (14 chars), TM9, or A2C (newer Uconnect). The serial label is on the body of the radio unit — not visible without removal on most models.
Entering the Radio Code on Dodge Caliber
You need to type in the anti-theft code into the system to unlock your Dodge's radio.
In the locked unit, the screen usually shows a security message.
Based on the radio, use radio presets, control knob, or touchscreen to set each digit, then submit the code to restore radio functionality.
To activate your Caliber radio with the code:
- Turn on the ignition—the radio display shows "CODE".
- Use preset buttons 1-4 to cycle through digits for each position.
- Press and hold ENTER/OK for 2-5 seconds to unlock.
Lockout Warning: After 3 incorrect attempts, the radio locks for 30 minutes. Keep the ignition ON during this waiting period.
