How to Find 2005 Honda Odyssey Radio Code [Fast]

Need the radio code for your Honda Odyssey 2005? The unlock process is based on the radio's serial number, and it's the same for all Hondas. But if you want in-depth instructions for your exact 2005 Odyssey, follow this guide.

You'll get your money back if it fails.
A quick proof may be required.
See our Refund Policy for full details.

Codes are sent immediately.
Some Honda cases require manual processing (24h).

Serial Number Patterns:

Your radio serial may start with: HBM, U1234L1234, 913A, 30006

Serial Number Examples:

HONDA:HBM23001513 (HONDA)
913A7271
U1234L1234
Dealer price $120 92% Off!
Our price: from $9.99
Safe Payment
Fast Delivery
312+ Reviews
See reviews →
100% money-back guarantee if the code doesn't work

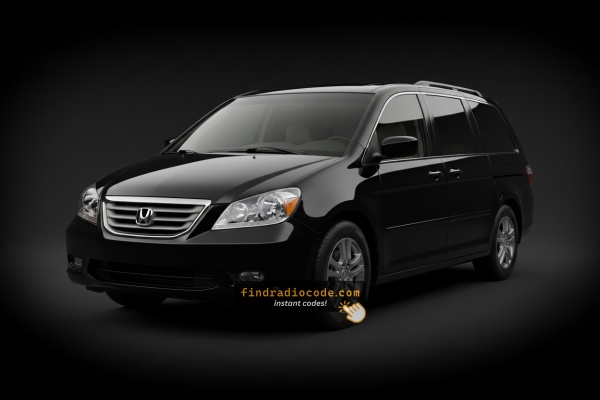

Honda Odyssey 2005 car photo
How to find Honda Odyssey 2005 radio serial number

Step-by-Step Honda Odyssey 2005 Radio Code Retrieval Guide

  • Instead of contacting Honda dealer or searching forums you can generate the code online with the radio S/N.
  • Start by finding the serial number. You will always find it on the unit itself, and in some cases it can be visible on the Odyssey's display.
  • Type it into the form above, and our software will generate the correct 2005 Odyssey unlock code.
  • When you receive the code, type it in using Odyssey's radio buttons to unlock the system fully.
  • The entire process takes just a short moment and requires zero paperwork and no dealer visit.

Final Step - Enter the Radio Code

Once the system gives you 2005 Honda Odyssey unlock code from the serial, you're ready to reactivate the radio.

Some drivers hesitate at this stage because input process can look different across radio versions, but it's usually simple.

When the radio shows dashed lines, it means the unit is waiting for the correct numbers.

Step-by-Step Code Input Guide

To enter the code on the 2005 Honda Odyssey's radio:

  1. Ignition ON. Radio shows "CODE".
  2. Press preset buttons 1-5 to enter each digit of the 5-digit unlock code. Each button cycles through digits 0-9.
  3. Hold button 6 for a few seconds to confirm.

Lockout: 3 wrong attempts = 60-minute lockout. Keep ignition ON for the full hour. Turning off the ignition resets the lockout timer.

Entering the 5-Digit Code on the 2005 Odyssey

Once you have the correct 5-digit anti-theft code for your 2005 Odyssey radio, the entry process itself is fast, but you have a strict attempt limit before the radio locks itself out, so verify the code before you start. The Touring trim's navigation system uses a separate 4-digit code entered on the touchscreen.

Limited Attempt Warning

You typically have around 10 attempts before the radio enters a lockout state. After roughly ten consecutive wrong codes, the factory Honda radio of this era displays Err or E and refuses further input until the lockout clears. Some units can be cleared by leaving the ignition in the ACC/ON position for one continuous hour and then trying the correct code; others may need to be reset by a Honda dealer or via Honda's official online radio code lookup. Cycling the key off does not always shortcut the timer, so do not hammer guesses at the unit.

Entering the audio code

  1. Turn the ignition to the ACC or ON position so the radio powers up and shows the CODE prompt.
  2. Press the preset that has the same number as the first digit of the 5-digit code - one press.
  3. Press the preset matching the second digit - one press.
  4. Press the preset matching the third digit - one press.
  5. Press the preset matching the fourth digit - one press.
  6. Press the preset matching the fifth digit - one press. Code 23614, for example, is presets 2, 3, 6, 1, 4.
  7. No hold or knob turn is normally needed to confirm; the radio checks the code by itself after the fifth digit.
  8. When accepted, the radio returns to its normal AM/FM display and audio resumes.

Touring navigation code

  1. The DVD-based navigation system on the Touring trim asks for a separate 4-digit code on the touchscreen at first power-up.
  2. Tap the digits on screen in order, then press Enter or OK to confirm.

If it does not unlock

  1. Stop after the second wrong attempt and re-verify the serial number you used to obtain the code.
  2. Make sure no leading letter or trailing digit was dropped from the serial.
  3. If Err appears on screen, leave the ignition in ACC/ON for the full one-hour cooldown before trying again.

Can't Find Your Radio Serial Number? Follow These Steps for Honda Odyssey 2005

The starting step is writing down the radio serial.

Many people assume the code depends on the Honda model or year, but actually, the whole process relies on the unique radio's serial number.

Each radio has its own serial tied to the security system.

This is actually better, because if you have a used radio, the VIN or other Honda-specific data wouldn't help.

Depending on the radio version used, you can see the serial directly from the display or by checking the label on the radio chassis.

Factory Radios on the 2005 Honda Odyssey

The 2005 model year launched the 3rd-generation RL3/RL4 Odyssey in North America with an all-new dash and a fresh family of factory head units. Honda offered three audio packages depending on trim, and the unit you got was tied to the trim badge on the tailgate.

  1. LX trim - AM/FM single-disc CD - the entry-level radio with four speakers and 120 watts of factory output, no XM pre-wiring and no in-dash CD changer.
  2. EX / EX-L trim - AM/FM with 6-disc in-dash CD changer - the most common 3rd-gen Odyssey radio, supplied by Alpine or Panasonic with Honda part numbers in the 39100-SHJ-. family (face codes such as 1BU1 on later builds), six speakers and 120 watts, XM-ready on EX-L from the factory.
  3. Touring trim - DVD-based Honda Satellite-Linked Navigation System - a separate two-piece system: a touchscreen head unit in the dash plus a DVD-based navigation computer mounted under the driver's seat. Premium audio uses a 360-watt amplifier and seven speakers including a subwoofer.
  4. Optional rear-seat DVD entertainment - a roof-mounted flip-down screen with its own DVD mechanism, available on EX-L and standard on Touring.

Quick visual ID

  1. A single CD slot in the centre of the fascia and no XM badge - that is the LX-grade single-CD unit.
  2. A wider CD slot with a small numeric disc indicator (1-6) on the display - that is the EX/EX-L 6-disc in-dash changer.
  3. A colour touchscreen with a separate NAVI or MAP button cluster - that is the Touring DVD-based navigation head unit.

All three head units carry the Honda anti-theft system and will display CODE or Err after a battery disconnect, requiring the original factory code (5 digits for the audio side, 4 digits for the navigation side on Touring) to come back online.

Access the Serial Number via the Radio Display

These are the steps you need to follow for 2005 Honda Odyssey:

The 2005 Honda Odyssey features a double-DIN radio with a multi-line display. The serial number can be displayed using the preset button method:

  1. Turn ignition to ON or ACC. The radio shows "CODE" or "ENTER CODE".
  2. Press and hold buttons 1 and 6 at the same time for 3-5 seconds.
  3. The screen cycles through the serial number in two segments: first half (e.g., U3210) then second half (e.g., L0482).

Tip: On certain 2005 Odyssey radios with navigation, the serial may show up in the Settings → System Information menu. Check this before using buttons if your model has a touchscreen unit.

On-Screen Serial Retrieval - 2005 Odyssey

For 2005 Odyssey factory CD and 6-disc head units, Honda's documented dealer-mode shortcut is to read the radio serial straight from the unit's own display, with no dash disassembly required. The procedure is the same one used across the 2003-2008 Honda audio family and is widely reported as working on the 3rd-gen Odyssey CD/MP3 radios.

Steps to display the serial

  1. Turn the ignition to the ACC or ON position so the radio is fully powered.
  2. Switch the radio off using the power button.
  3. Press and hold preset buttons 1 and 6 at the same time, then press the power button while still holding 1 and 6.
  4. Keep all three buttons held for several seconds (some early 3rd-gen units need the 1 and 6 buttons held for the full five seconds before the unit responds).
  5. The display will toggle between two screens - one shows U followed by the first four digits of the serial, the other shows L followed by the last four digits. Together they form the 8-character serial number.

Touring navigation system note

  1. The Touring DVD-based navigation head unit does not always respond to the 1+6+power shortcut.
  2. The navigation unit's serial is typically read from a sticker on the navigation computer, which is mounted under the driver's seat - slide the seat fully forward and look at the rear face of the box.

If the shortcut does not work

  1. Confirm the radio is fully off (display dark) before pressing 1+6+power, not just muted.
  2. If 1+6+power gives no response after several attempts, fall back to physically removing the head unit and reading the serial from the chassis label.

Locate Serial on Odyssey's Radio Chassis

If the serial number cannot be accessed through menu, use the hardware method.

Most Honda Odyssey factory radios include a tag with the serial number printed on the chassis.

Basic process:

  • Shut down the car.
  • Lift away surrounding mounting frame.
  • Loosen screws holding the radio.
  • Move slightly to inspect the label.

If the 1+6 method doesn't work on your 2005 Honda Odyssey:

  1. Power down the vehicle.
  2. Pry off the center stack trim with a trim removal tool. The 2005 Odyssey's double-DIN radio sits within a bezel attached by snap clips.
  3. Remove the 4 Phillips-head screws fastening the radio in the bracket.
  4. Ease the unit out to access the serial label on the radio housing.

Tip: The 2005 Odyssey's double-DIN radio weighs more than single-DIN units. Support it with both hands when sliding it out.

Radio Removal on the 2005 Honda Odyssey

If the on-screen 1+6+power shortcut does not display the serial, and the dash sticker, owner's wallet card and glove box label are not available, the next step is to remove the head unit and read the serial directly from the chassis label. The 3rd-gen Odyssey dash bezel is held by retaining clips with four bolts on the radio itself, so the work is mechanically simple but should be done with care because of the SRS airbag wiring near the dash.

Safety first

  1. Turn the ignition fully off and remove the key from the cylinder.
  2. Disconnect the negative terminal of the 12V battery.
  3. Wait at least three minutes before working near the dash so the SRS airbag capacitor can fully discharge.
  4. Stay clear of any yellow airbag connectors while the trim is loose.

Tools you will need

  1. A flathead screwdriver to start the upper-glovebox dash-clip release.
  2. Plastic trim/panel pry tools to walk around the bezel without scratching the dash.
  3. A Phillips or 8mm/10mm socket for the four radio retaining bolts (depending on Honda's batch).
  4. Masking tape on screwdriver tips to protect the surrounding dash plastics.
  5. A phone or camera to photograph the chassis label once the radio is out.
  6. Note: 3rd-gen Odyssey factory radios are bolted in, not held by spring DIN clips, so Honda H3 / DIN release keys are not normally required for this generation.

Removal overview

  1. Open the upper glovebox and find the small slot on the side of the pop-off centre dash panel.
  2. Insert a flathead screwdriver into that slot and pry up the first clip in the upper right-hand corner of the bezel.
  3. Walk the pry tool around the perimeter of the bezel, releasing each clip in turn until the bezel comes free.
  4. Disconnect any wiring still attached to the bezel (for example the hazard switch) and set the bezel aside.
  5. Remove the four bolts holding the radio to the dash sub-frame.
  6. Slide the head unit forward and unplug the wiring harness, antenna lead and any fibre/data connectors from the rear of the unit.

Where the serial is printed

  1. Look on the top, side or rear face of the metal chassis for a white or silver thermal-printed label.
  2. The label carries a Honda part number (for example 39100-SHJ-..) and a separate serial number.
  3. Copy the longest alphanumeric string next to the barcode - that is the serial line, not the part number.

Touring navigation

  1. The DVD-based navigation computer on the Touring trim is mounted under the driver's seat, not behind the dash.
  2. To read its serial, slide the driver's seat all the way forward and up, look at the back of the navigation unit and copy the printed serial from the sticker.
Honda Odyssey 2005 radio serial number label location

Example: Honda Odyssey serial number label location

These are the Common Serial Formats

The 2005 Honda Odyssey radio serial number has the standard Honda OEM format:

  • U1234L5678 – Standard Honda factory format – two halves displayed separately (U#### then L####), combined into a 10-character serial

Radio manufacturers for the 2005 Odyssey: Alpine (most common) or Panasonic. Nav models may have a separate module but typically use the same U/L two-part serial format.

Reminder Record the complete serial exactly – a single wrong character will produce an incorrect code.

Common Serial Number Formats on 2005 Odyssey Head Units

Factory 2005 Odyssey head units carry a printed serial number on the chassis label rather than a moulded-in code. On 3rd-gen Odyssey CD and 6-disc units the serial is typically presented in two halves (U and L) on the unit's own display when 1+6+power is held.

What the serial typically looks like

  1. The serial is an 8-character alphanumeric string, made of digits with a single-letter prefix on the chassis label.
  2. On Honda audio of this era the prefix is most often U on Alpine-supplied units, with M seen on some Panasonic builds; the remaining seven characters are digits or letters.
  3. When read from the on-screen dealer-mode shortcut, the same serial appears split across two screens - U followed by the first four characters, then L followed by the last four characters. The U and L are screen labels, not part of the serial; the full serial is the eight characters from the two halves combined.
  4. The chassis label also lists a Honda part number such as 39100-SHJ-A100 or 39100-SHJ-A400 with a face code like 1BU1 - this is not the serial and should not be entered into a code lookup tool.

What to copy from the label or display

  1. Take the longest alphanumeric string next to the barcode on the chassis label - that is the serial line.
  2. Or combine the on-screen U and L halves into a single eight-character string.
  3. Double-check ambiguous characters such as O vs 0 and I vs 1 by comparing the printed string with the barcode or by re-toggling the on-screen display.

Touring navigation system

  1. The DVD-based navigation computer under the driver's seat carries its own separate serial number, used for the 4-digit navigation PIN, distinct from the 5-digit audio code.

Why Is the Radio Asking for a Code?

Mid-era Honda radios carry the same anti-theft logic as earlier models: any interruption in battery power activates the code prompt on the next startup. Frequent reasons include:

  • Battery replacement or disconnect — by far the most common cause.
  • Battery drain — a fully dead battery also activates the lock.
  • Fuse replacement — replacing the radio fuse can briefly interrupt power and activate the lock.
  • Workshop electrical work — repairs that involves disconnecting the battery will produce this.

Using the correct code removes the lock and the radio resumes normal operation immediately. The lock only comes back if power is disconnected again.

Understanding Unlock Issues with Your Odyssey

An incorrect code result on the double-DIN Honda is almost always traced back to the wrong serial number being submitted. The serial label on the back of the radio contains both the serial and the part number — make sure you submitted the serial (U####L####) and not the part number.

After a rejected attempt, avoid entering more guesses — there are only 3 tries before a 60-minute lockout. Reach out to us with the serial for a free recheck before retrying.

Following 3 wrong entries, the mid-era Honda radio enters lockout mode and displays an error or refuses input. To recover it:

  1. Keep the ignition in the ON position — do not switch it off.
  2. Allow the full 60 minutes to elapse. Switching off at any point resets the waiting period.
  3. Once 60 minutes have passed, the radio should show "CODE" again.

Navigation-equipped 2005 Odyssey units follow the same 60-minute lockout procedure. Should it remains locked after waiting, the unit may need a dealer diagnostic.

The mid-generation Honda radio uses an identical button layout as the older single-DIN platform:

  • Preset buttons 1–5 — each press scrolls through digits 0–9 to set that digit of the code.
  • Button 6 — press and hold for 2–3 seconds to confirm the full code.

On certain 2005 Odyssey navigation-equipped radios, the preset buttons may be arranged slightly differently or supplemented by menu buttons. If that applies, the confirmation button is still the rightmost preset or a dedicated ENTER button.

If the radio powers on but skips the "CODE" prompt, consider these causes:

  • The unit might be unlocked — attempt normal operation first.
  • Some 2005 Odyssey radios display "ENTER CODE" rather than just "CODE" — either message means the same thing.
  • On nav-equipped units: the nav screen may appear before the code screen. Wait a moment for the audio system to initialize separately.

Should no code screen appears at all, verify the radio has power — a blown radio fuse will stop the unit from showing any display.

The serial number format for the double-DIN Honda radio is one of:

  • U####L#### — the standard two-part Honda serial (first half starts with U, second with L).
  • HBM#### — used on navigation and certain premium configurations.
  • 913A#### — used by Alpine-manufactured modules.

Honda part numbers on the same label begin with 39100 or 39101 — never submit those. If uncertain, use the 1+6 button method to retrieve the serial on the screen itself.

Get Your Honda Odyssey 2005 Radio Code Now
