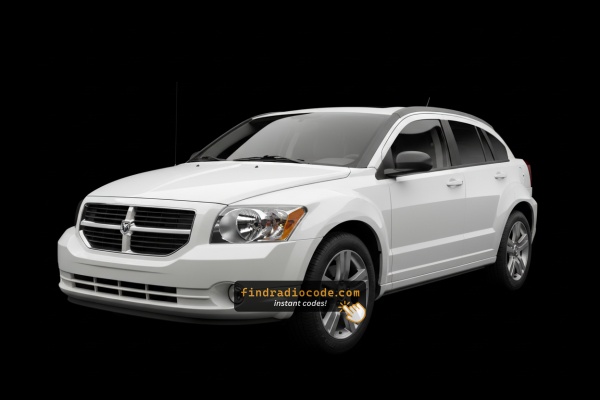

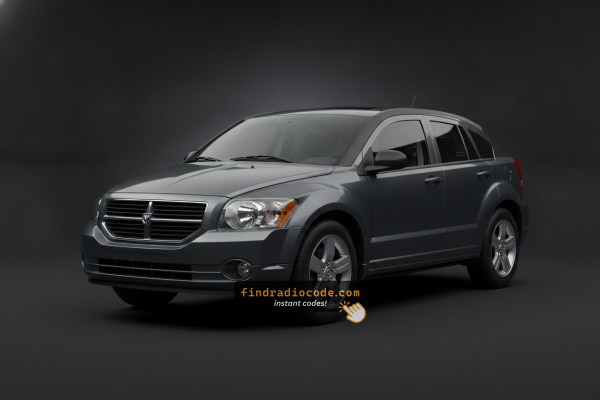

Serial Number Location Guide for Dodge Caliber 2012
The initial step is to locate the radio's S/N.
Depending on the radio unit fitted in your 2012 Caliber, the serial can usually be accessed either through the screen menu or by checking the label on the radio itself.
Follow the steps below to identify your S/N quickly.
Accessing the Serial Number Through the Radio Menu
The method for 2012 Dodge Caliber is this:
The 2012 Dodge Caliber may be equipped with the REF (AM/FM CD player), RES 130 (Media Center), or RAQ (base 6-disc CD) radio. These older systems have on-screen serial number display.
The serial number is accessed by pulling the unit out and checking the label on the housing. Check for a white label on the back or side of the radio unit.
Find it by Pulling Out the Radio
If the serial does not appear in menu, the next step is checking the radio itself.
Many Dodge radios require physical access to the serial sticker attached to the unit.
Typical approach:
- Start by completely shutting off the engine - pull the key out.
- Then remove the trim panel.
- Next, loosen the mounting points and move the radio forward.
- Look for a printed tag showing the serial number.
The 2012 Caliber's radio is located in the center of the center stack. To extract it:
- Turn off the vehicle.
- Remove the trim panel surrounding the head unit. The Caliber uses snap-fit clips – start from the top and pry along the edges with a trim tool.
- Unscrew the four Phillips screws holding the radio.
- Slide the radio out and read the serial number on the side or rear label.
Note: The Caliber's center trim also covers the climate controls. Take care to avoid breaking the plastic clips.
Example: Dodge Caliber serial number label location
Standard Serial Number Patterns on This Radio
Common radio models in the 2012 Caliber:
- REF (AM/FM CD, 66W) – Serial prefix:
TM9 - RES 130 (Media Center 130, CD/MP3) – Serial prefix:
TM9orT00AM - RAQ (base 6-disc AM/FM/CD) – Serial prefix:
TM9 - MyGIG REP/RBZ 430 (if equipped) – Serial prefix:
TM9
All serial numbers are 14 characters. The Caliber shared its head unit platform with the Jeep Compass and Patriot of the same era.
Got the Code? Here's How to Enter It
When you obtain the correct unlock code based on the serial number, you can restore normal functionality by entering it into the unit.
The code entry process depends on the control layout, but most 2012 Caliber systems follow a similar structure using preset buttons, touch controls, or rotary knobs - depending on if it's a factory or an aftermarket unit.
You will typically see CODE displayed on screen.
Step-by-Step Code Input Guide
To enter the radio code on your 2012 Dodge Caliber:
- Turn ignition ON. The radio displays "CODE".
- Non-touchscreen (REF/RES/RAQ): Press preset button 1 multiple times to select the first digit. Repeat with buttons 2, 3, 4. Press and hold Enter/OK to confirm.
- Touchscreen (MyGIG 430): Use the on-screen keypad to enter all 4 digits.
Lockout: Multiple incorrect attempts activate a lockout. Keep the radio on for about 60 minutes to reset.
Steps to Unlock Your 2012 Dodge Caliber Radio
Getting your radio code takes only 4 easy steps.
- Locate the radio's serial number - this is the only info required by our side.
The difference with the dealership lookup is that no VIN or paperwork is needed. - When you've found the S/N, type it into the form above.
The system checks it against a database of supported factory radios and automatically retrieves the matching security code. - In most cases, the code will appear instantly on the screen after you pay and is also sent to your email , just in case.
If manual verification is required (rare situations), you'll be notified before checkout. - When you get it, just enter it into your radio to restore the functionality.
Why Is the Radio Asking for a Code?
The Caliber is among the Dodge models where the anti-theft trigger is especially common. Reasons include:
- Battery failure or disconnect — Older Calibers frequently need battery replacements, and every disconnect triggers the radio lock.
- Dead battery from sitting — Calibers left parked for weeks often lose enough charge to trigger the anti-theft.
- Blown fuse — fuse replacement also triggers the lock.
- Used purchase — Calibers are popular used buys, so many owners encounter the lock immediately.
Regardless of why it locked, the unlock code is permanently tied to the serial number and is always recoverable.
Fixing Common Code Entry Problems for 2012 Caliber
The Caliber's radio needs to be pulled to access the serial label, as none of the Caliber's radios support on-screen serial display. On the label:
- Serial number — 14 characters, starting with
TM9orT00AM. Use this. - Part number — commonly
P05064...or68.... Skip.
On older Caliber labels, the print may have faded. Use a flashlight and take a photo before putting the radio back.
The entry method on the Caliber varies with which radio is fitted:
- REF, RES 130, RAQ (non-touchscreen) — Press preset button 1 repeatedly to reach the first digit, button 2 for digit two, button 3 for digit three, button 4 for digit four. After that, press and hold Enter/OK to submit.
- MyGIG REP/RBZ 430 (touchscreen) — Enter digits directly on the touchscreen. No hold-confirm step required.
If unsure which radio type you have, check the screen — a glass display you can tap means touchscreen entry; a black physical display means preset button entry.
The Caliber's radio enters a lockout after too many failed entries. The display will show "WAIT" or just stops responding. To wait it out:
- Keep the key in the ON position for about 60 minutes.
- Turning the key off resets the wait.
The Caliber frequently experiences battery issues which cause this more often than on newer vehicles. Once the 60 minutes are up, re-enter carefully using the preset buttons or touchscreen.
When no code prompt appears after a power event:
- Confirm the ignition is in ON — not just ACC to show the code screen.
- Check the radio fuse in the fuse panel — the Caliber's fuse box is under the hood. A blown fuse prevents any display.
- Attempt pressing the power button on the radio front panel to wake the code prompt.
Aging Calibers can develop fuse box corrosion that cause similar symptoms to a dead radio.
In this era of Dodge vehicles, a rejected code usually means a serial number mismatch. Multiple numbers appear on the radio label — look for the one that starts with TM9 or T00AM and is exactly 14 characters. The part number (P05064...) looks similar but will not generate a code.
Should it not work, re-read the label after removing the radio and contact support if anything is unclear.
