How to Find 2017 Jeep Compass Radio Code [Instant]

Need the radio code for your Jeep Compass 2017? The unlock process is based on the radio's serial number, and it's the same for all Jeeps. But if you want full instructions for your exact 2017 Compass, follow our guide.

You'll usually get your Jeep Compass code in seconds.
Rare Jeep cases may take up to 24 hours.

We offer a full refund if the code doesn't work.
Just follow our simple verification steps.
Check the Refund Policy page for more information.

No VIN required - just enter the serial number of the radio.
No documents required.

Serial Number Patterns:

Your radio serial may start with: T00AM, T00BE, TM9, T0MYD, A2C, TQN, TVPQN, T0071, T00AD

Serial Number Examples:

TM9341100221 (TM9)
T00BE351823197 (T00BE)
T0MYD164822563 (T0MYD)
Dealer price $120 92% Off!
Our price: only $19.99
Secure Payment
Get Code Instantly
281+ Reviews
See reviews →
Full refund if your code fails

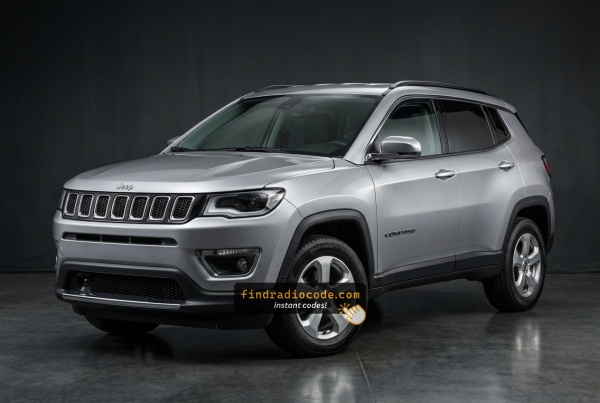

Jeep Compass 2017 car photo
How to find Jeep Compass 2017 radio serial number

Why Did the Radio Lock and Ask for a Code?

The 2017 Compass (MP) sees radio lockouts most commonly from:

  • Battery disconnect or replacement — the most frequent reason on all Uconnect platforms.
  • Dead battery from commuter use — Compass vehicles used as daily commuters can see charge issues from short-trip driving, causing the anti-theft.
  • Used purchase — the redesigned Compass is a popular family-oriented used vehicle, and the code is often not included at resale.
  • Blown fuse — fuse failure cuts the radio supply and triggers the code lock.

The code is linked to the radio serial and never expires.

Understanding the Radio Serial Number and How to Locate It on 2017 Compass

The important thing to know is that factory radios use a unique S/N to identify each unitindividually.

The anti-theft system matches the code directly to the serial.

Unlike car-specific data like VIN or registration information, it is not determined by the model or production year, so you'll be able to get it even if you have an aftermarket radio.

Depending on the maker and radio installed in your Jeep Compass, the access method varies.

Here are the best ways to find it.

Factory Radios on the 2017 Jeep Compass

The 2017 model year is unusual because the first-generation Compass (MK) was sold for the first half of the model year and the all-new second-generation MP/552 Compass arrived for the latter half. Factory radio options below cover the new 2nd-gen MP introduced in 2017 - the RA family (Uconnect 3 and Uconnect 8.4) is the line-up for these MP cars.

  1. Uconnect 3 with 5-inch display (sales code RA1) - 5-inch touchscreen, base radio. Standard on Sport. Visual ID: small 5-inch display centred in the dash, no Apple CarPlay or Android Auto, six-speaker audio, AM/FM/Bluetooth/AUX/USB. The most common factory radio on early MP Compass cars by volume.
  2. Uconnect 8.4 (sales code RA3) - 8.4-inch touchscreen, non-NAV. Optional on Latitude and Limited. Visual ID: large 8.4-inch screen filling the dash opening; Apple CarPlay and Android Auto are supported, but the home screen has no Map/NAV tile because GPS navigation is not built in.
  3. Uconnect 8.4N NAV (sales code RA4) - 8.4-inch touchscreen with built-in GPS navigation. Standard on Trailhawk, optional on Limited. Visual ID: identical 8.4-inch bezel and glass to RA3, but the home screen carries a dedicated NAV/Map tile and on-board maps are bundled.

Field check: 5-inch screen = RA1, 8.4-inch with no Map tile = RA3, 8.4-inch with a Map tile = RA4. If the car is an early-2017 first-generation MK Compass, the factory unit will instead be a single-DIN Uconnect 130 or VP1/VP2 head unit, not the RA family.

Find the S/N via the Radio Screen

Try the following for your 2017 Jeep Compass:

The 2017 Jeep Compass (MP platform, redesigned) is equipped with the Uconnect 7.0" touchscreen (RA2.1). The redesigned MP Compass sports a cleaner dashboard compared to the older MK49 platform, with the 7" screen sitting in a modern, horizontal center stack. Access the serial via Dealer Mode:

  1. Turn ignition to ACC or ON.
  2. Press and hold the Temperature Up and Temperature Down buttons simultaneously for about 5 seconds.
  3. The Engineering Menu shows on the 7" screen.
  4. Navigate to: System Info → Target Main Data → Serial Number.

Note: On the 7" Uconnect, look for "Target Main Data" rather than "Radio Part Info" — that is the correct path.

Find Your Serial Number on the Radio Display

On the 2017 MP Compass equipped with the 8.4-inch RA3 or RA4 radio, the head-unit serial number can usually be read straight from the touchscreen via the hidden dealer/diagnostic menu - no need to remove the unit from the dash. The 5-inch RA1 has a much smaller diagnostic menu and is more commonly read from the chassis label.

Uconnect 8.4 (RA3 / RA4)

  1. Switch the ignition to RUN/ACC and wait for the Uconnect interface to finish booting.
  2. Press and hold the driver-side temperature UP, the driver-side temperature DOWN, and the front DEFROST buttons together for roughly 5-10 seconds until the dealer/engineering screen opens.
  3. If the climate-button shortcut does nothing, press and hold the bottom-left and bottom-right corners of the screen at the same time for about 5-10 seconds.
  4. Browse to the radio/system info section to read the serial number printed on screen.
  5. Photograph the screen so each character can be transcribed without typos.

Manufacturer Label Inspection

If the serial does not appear on display, the next step is checking the radio itself.

Many Jeep radios require physical access to the serial sticker attached to the unit.

Common approach:

  1. Start by completely powering down the engine - pull the key out.
  2. Then remove the radio surround.
  3. Next, release the mounting points and slide the radio forward.
  4. Look for a factory sticker showing the serial number.

If Engineering Mode is unavailable on your 2017 Compass (MP), extract the radio to read the serial label:

  1. Power down the vehicle.
  2. Remove the center stack trim surrounding the 7" screen. The MP Compass's cleaner trim uses snap fasteners – a pry tool, starting at the bottom.
  3. Unscrew the four Torx T20 mounting screws.
  4. Slide the unit forward to read the serial label on the side or top of the chassis.

MP Compass Note: The redesigned Compass has a tighter center stack than the older MK49. Work carefully when removing the bezel to prevent breaking the slim trim clips.

View Serial by Pulling Out the Radio Unit

If the on-screen menu is unavailable on the 2017 Compass - for example on the small RA1 5-inch unit, or after a software update that disabled dealer mode on RA3/RA4 - the chassis label can still be reached by carefully removing the head unit. The radio sits in a centre stack bezel with the climate cluster below, so work slowly to avoid breaking trim clips.

  1. Safety first: turn the ignition off, take out the key, disconnect the negative battery terminal, and wait several minutes before touching wiring; never disturb the yellow airbag/SRS connectors and use plastic trim tools so nothing shorts or breaks.
  2. Tools you will need: plastic trim removal kit, Phillips and small Torx bit set, 7mm/10mm socket set, flashlight.
  3. Removal overview: on the MP Compass the radio sits inside a centre stack bezel with the climate controls below; pop the bezel out gently from the bottom edge using a plastic pry tool, work up the sides, and unclip any switch/HVAC harnesses before setting the bezel aside.
  4. Releasing the radio: remove the screws (typically four, two top and two bottom) holding the radio cage to the dash support bracket, then pull the head unit straight rearward.
  5. Disconnect carefully: release the antenna lead and the multi-pin power/data connectors on the back of the unit before fully extracting it.
  6. Find the label: the serial sits on a printed barcode/sticker on the top or side of the radio housing, alongside the part number and supplier markings.
  7. Tips: never pry against the touchscreen glass; if the bezel resists, stop and double-check for hidden screws rather than pulling harder. If you are not comfortable working around airbag/SRS wiring, have a professional installer remove the unit for you.
Jeep Compass 2017 radio serial number label location

Example: Jeep Compass serial number label location

Standard Serial Number Patterns on This Radio

The 2017 Compass (MP) with Uconnect 7.0" serial formats:

  • T00AM – Most common Harman prefix
  • T00BE – Continental variant
  • T0MYD – Newer Harman production (later Compass)

Radio designation: RA2.1 (Uconnect 7.0"). Serial: 14 characters, alphanumeric. S/N pattern is identical across all Uconnect variants.

Typical Serial Number Formats for 2017 Compass Radios

The factory radios on the 2017 MP Compass use the standard Mopar/Uconnect head-unit serial style. The exact prefix depends on which Uconnect tier shipped with the car and which supplier (Visteon, Continental, Harman or Panasonic) built the unit, so the printed sticker on the chassis is the authoritative reference.

Uconnect 8.4 (RA3 / RA4)

  1. Typically a 14-character alphanumeric string printed on the chassis label.
  2. Commonly begins with T - frequent prefixes include T00AM, TM9 and TQ1 - or with A2C on Continental-built variants.
  3. Often runs as a continuous string of letters and digits with no dashes or spaces.

Uconnect 3 5-inch (RA1)

  1. Usually carries a Mopar/Visteon-style serial on the chassis label - the printed sticker on the unit itself is the authoritative reference.
  2. Always copy the serial exactly as printed and avoid guessing characters that look unclear.

Got the Code? Here's How to Enter It

Once you receive the correct unlock code based on the serial number, you can restore default functionality by entering it into the unit.

The code entry process depends on the control layout, but most 2017 Compass systems follow a similar structure using preset buttons, touch controls, or rotary knobs - depending on if it's a factory or an aftermarket unit.

You will typically see ENTER CODE displayed on screen.

Entering Process

To enter the code on your 2017 Compass (MP)'s Uconnect 7.0":

  1. Ignition ON. Screen displays "ENTER CODE" or ----.
  2. Use the touchscreen keypad to enter each digit of the 4-digit code.
  3. Radio unlocks automatically after entering the 4th digit.

Lockout: 3 wrong attempts = 60-minute lockout. Keep ignition ON. Turning off the ignition restarts the 60-minute wait.

Entering Process

Once the unlock code has been retrieved for a 2017 Compass Uconnect head unit, it can be entered directly at the dash - no scan tool or dealer visit required.

  1. Limited attempts: Mopar/Uconnect head units only accept three incorrect tries before the radio enters a WAIT state, so confirm every digit before pressing it.
  2. Place the ignition in RUN/ACC so the radio powers up but the engine stays off.
  3. Wait for the display to show CODE, Please enter Anti-Theft Code, or a similar prompt.
  4. On the Uconnect 8.4 (RA3/RA4), tap the on-screen number pad to enter each of the four digits and confirm with the on-screen OK/Enter button.
  5. On the Uconnect 3 5-inch (RA1), use the numbered preset buttons or the rotary tuning knob - depending on which prompt the unit shows - to key the code in sequence.
  6. If WAIT appears after wrong attempts, leave the radio powered with the ignition in RUN for the documented cool-down period (about 30 minutes; the vehicle may be driven during this time) before trying the correct code again.

Unlock Your 2017 Jeep Compass Radio in Minutes - How It Works

Getting your radio code takes only 4 simple steps.

  1. Find the radio's serial - this is the only info required by our side.
    The difference with the dealership lookup is that no VIN or paperwork is needed.
  2. Enter the serial number into our generator above.
    Our system checks it against a database of supported factory radios and automatically retrieves the matching security code.
  3. In most cases, the code appears instantly on the screen after you pay and is also sent to your email , just in case.
    If we need to check it manually, you'll be notified before checkout.
  4. Once you receive the code, simply enter it into the radio to restore full functionality.

Understanding Unlock Issues with Your Compass

The Compass MP's Uconnect 7.0" (RA2.1) uses touchscreen exclusively for code entry — no physical preset buttons used. Tap each digit on the 7" touchscreen. Radio auto-confirms after the last digit.

Note that the Engineering Menu (Temp Up + Temp Down hold) is only used to find the serial — not for entering the code.

Three wrong entries on the Compass MP's 7" Uconnect activate a 60-minute lockout. The screen displays "WAIT". To handle the lockout: keep the ignition ON for the full 60 minutes. Cycling the ignition resets the lockout timer.

The 7" Uconnect on the 2017 Compass (MP) supports on-screen serial retrieval via the Engineering Menu: hold Temperature Up + Temperature Down for 5 seconds, then go to System Info → Target Main Data → Serial Number.

  • Serial — 14 characters, prefixed by T00AM, T00BE, or T0MYD. This is what to submit.
  • Part number — begins with P or 68. Not the serial.

On this system, the menu path says "Target Main Data" rather than "Radio Part Info" — that is normal for this system.

If no code entry screen appears after a power event: ensure ignition is ON and allow 15–20 seconds for the Uconnect 7" to boot. Inspect the radio fuse — a blown fuse prevents the display from showing anything.

If the code fails on the Compass MP's Uconnect 7.0" typically indicates the wrong serial was submitted. The RA2.1 serial is 14 characters, starting with T00AM, T00BE, or T0MYD. The part number (P... or 68...) is also shown on the label but generates no code.

The Engineering Menu is the most reliable way to verify the serial on the Compass MP. Reach out for a free re-check if anything seems wrong.

Get Your Jeep Compass 2017 Radio Code Now
